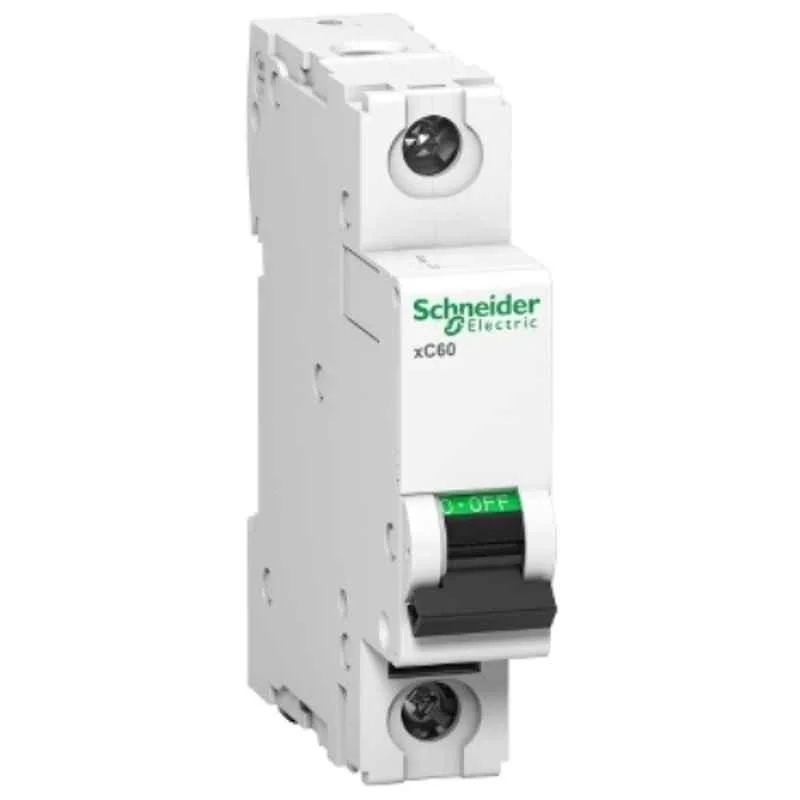

Schneider Electric Acti9 xC60 63A C-Curve Single Pole MCB, A9N1P63C, Breaking Capacity: 10 kA

Availability:

In stock


Key Features

  • Higher System Performance with Optimized Cost: Cascading.
  • Higher Installation Life: Energy Limitation Class 3, Fast Closure Mechanism.
  • Ease, Speed & Flexibility of Installation Biconnect, Line-Load Reversible.
  • Field-Fit table Auxiliaries for Advance Protection & Monitoring.
  • Positive Contact Indication for Assurance of Disconnection.

609

In stock

Product Details

Voltage fluctuation is a very common phenomena in any home. Safeguard your residence with Schneider Electric 63A Acti 9 xC60 Single Pole 10kA C Curve MCB, A9N1P63C. An MCB is an intelligent, automatic and most reliable product one should install. This Schneider MCB comes with Single Pole. Each pole of this MCB has a capacity to detect and break the circuit at 10 kA. MCB can completely avoid any sorts of mishappening that might happen due to overload, overcurrent or short circuit. This product has a C type curve, which prevents the short circuit. An MCB can protect your appliance from any sort of electrical damage. With a current rating of 63 Amp, this device is the best for domestic usage. MCB is generally used to control, master and regulate the electrical power system. If you have an MCB placed at the right place for the right circuits then you need not worry about anything else.

Browse through the extensive list of MCB at Moglix. Shop online for other Schneider Electric MCB. available at Moglix in the lowest price range.

SKU: MSN75DQJNVGV92 Categories: ,



Product Specifications

Brand
Breaking Capacity
10 kA
Current Rating
63 Amp
Curve Type
C
Number of Poles
Single Pole
AC or DC
AC
Frequency
50/60 Hz
Item Code
A9N1P63C
Number of Modules
1
Protection Class
IP20
Rated Voltage
220-240 VAC
Additional Details
Insulation Voltage: 500 VAC
Impulse Voltage: 6 kV
Tightening Torque: 2 Nm
Ambient Temperature
Operating: -30 to 70 deg C
Storage: -40 to 85 deg C
Dimensions
85x18x77.5 mm
Model
xC60
Mounting type
Clip-on (DIN Rail)
Notes
Images are for reference purpose only
Series
Acti9
Standards
EN/IEC 60898-1 & EN/IEC 60947-2
Weight
0.115 Kg
Country of origin
India
Manufacturer Details
Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Packer Details
Schneider Electric, 10th Floor, DLF Cyber city,Building Number 10 C,Gurgaon,Haryana-122002,,India.
Common/Generic Name
MCB
Dimensions LxWxH
81x18x78.5 mm
Weight
94 g
